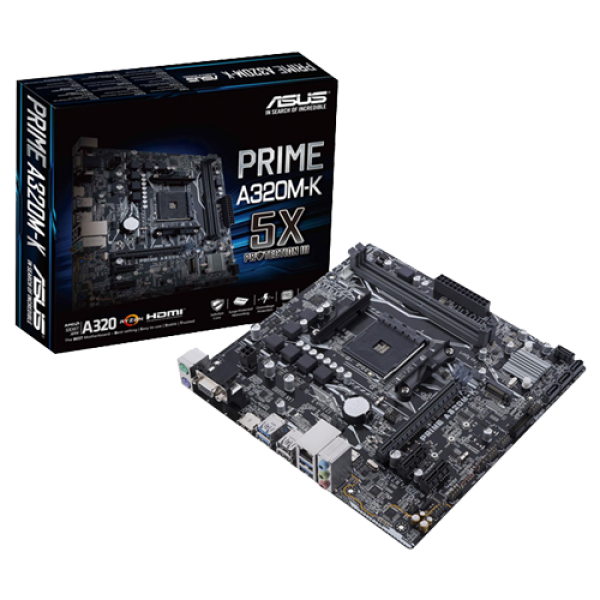

Matična ploča AM4 Asus Prime A320M-K VGA/HDMI/M.2

Name: Matična ploča AM4 Asus Prime A320M-K VGA/HDMI/M.2 - STD Comp
Brand: ASUS
SKU: -1
Price: 6430 RSD
Availability: schema.org
Rating: 88 (20 reviews)

ASUS

Šifra: 7676

Proizvod iz grupe: MATIČNE PLOČE ZA AMD SOKET
Proizvođač: ASUS
Dostupna količina: 0

Maloprodajna cena: 7.440,00 rsd.

(* za odlozeno placanje)

WebCena: 6.430,00 rsd.

Popust: 1.010,00 rsd.

Tip procesora
AMD
Podnožje
AMD® AM4
Čipset
AMD® A320
Format ploče
Micro ATX
Podržani procesori
AMD procesori AM4 podnožja AMD Ryzen™sedma generacija A-seriesAthlon™ procesora Podržava procesore do 8 jezgra.
Podržana memorija
DDR4
Memorija
AMD Ryzen™ procesori 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)2933(O.C.)266624002133 MHz Non-ECC, Un-buffered Memory AMD sedma generacija A-seriesAthlon™ procesora 2 x DIMM, Max. 32GB, DDR4 24002133 MHz Non-ECC, Un-buffered Memory Dvo-kanalna memorijska arhitektura * Hyper DIMM podrška zavisi od karakteristika procesora
Integrisana grafička karta
Podrška za integrisanu AMD Radeon™ R serije grafiku u sedmoj generaciji A-serije APU procesora Dva izlaza: HDMI RGB - Podržava HDMI 1.4b sa maksimalnom rezolucijom 4096 x 2160 @ 24 Hz 2560 x 1600 @ 60 Hz - Podržava RGB sa maksimalnom rezolucijom 1920 x 1200 @ 60 Hz Maksimalna deljena memorija 2048 MB
Slotovi za proširenje
AMD Ryzen™ Processors 1 x PCIe 3.02.0 x16 (x16 mode) AMD 7th Generation A-seriesAthlon™ Processors 1 x PCIe 3.02.0 x16 (x8 mode) AMD A320 chipset 2 x PCIe 2.0 x1
Storage
AMD A320 chipset : 4 x SATA 6Gbs port(s), gray, Podržava Raid 0, 1, 10 AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 224222602280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-seriesAthlon™ Processors : 1 x M.2 Socket 3, with M key, type 224222602280 storage devices support (SATA mode)
Mrežna karta
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Zvučna karta
Realtek® ALC887 8-Channel High Definition Audio CODEC
USB
AMD Ryzen™7th Generation A-seriesAthlon™ Processors : 4 x USB 3.1 Gen 1 port(s) (4 na zadnjem panelu, plavi) AMD A320 chipset : 2 x USB 3.1 Gen 1 port(s) (2 preko internog konektora) AMD A320 chipset : 6 x USB 2.0 port(s) (2 na zadnjem panelu, , 4 preko internog konektora)
Konektori na zadnjoj strani
1 x PS2 keyboard (purple) 1 x PS2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s)
Interni konektori
1 x USB 3.0 Gen 1 connector(s) support(s) additional 2 USB 3.0 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 224222602280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gbs connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x SPDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector
Bios
128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Ostalo
ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back IO: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
