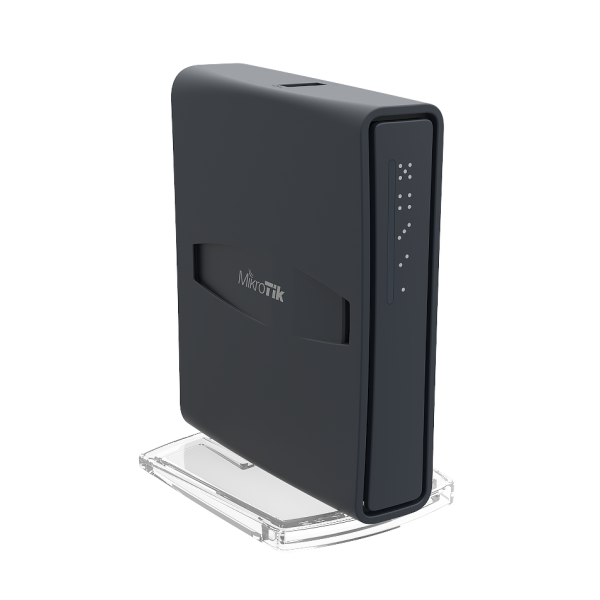

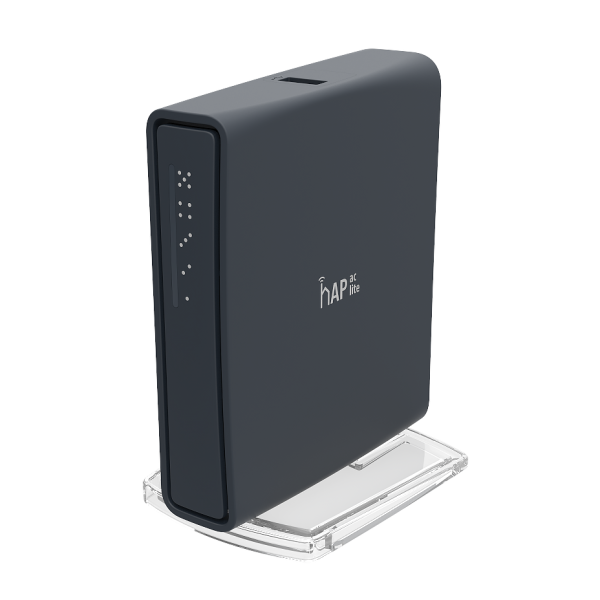

hAP ac lite je Dual-concurrent Access Point, koja istovremeno obezbeduje WiFi pokrivenost za frekvencije od 2,4 GHz i 5 GHz.

Jedinica je opremljena sa 650MHz CPU-om, 64MB RAM-a, pet 10/100Mbps Ethernet portova (PoE izlaz na portu #5), dual-chain 802.11b/g/n 2.4GHz bežicnim, single chain 802.11a/n/ac 5GHz bežicnim, USB port za 3G/4G modem i licencu RouterOS L4.

Univerzalno kuc´ište novog dizajna omoguc´ava da se jedinica pozicionira bilo horizontalno (desktop) ili vertikalno (kuc´ište toranj). Obezbeden je komplet za montiranje na zid.

Architecture: MIPSBE
CPU: QCA9531
CPU: core count 1
CPU nominal frequency: 650 MHz
Dimensions: 34 x 119 x 98mm
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -30°C to 70°C

Wireless capabilities
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2
Wireless 2.4 GHz chip model: QCA9531
Wireless 2.4 GHz generation: Wi-Fi 4
Wireless 5 GHz Max data rate: 433 Mbit/s
Wireless 5 GHz number of chains: 1
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 2
Wireless 5 GHz chip model: QCA9887
Wireless 5 GHz generation: Wi-Fi 5
AC speed: AC750

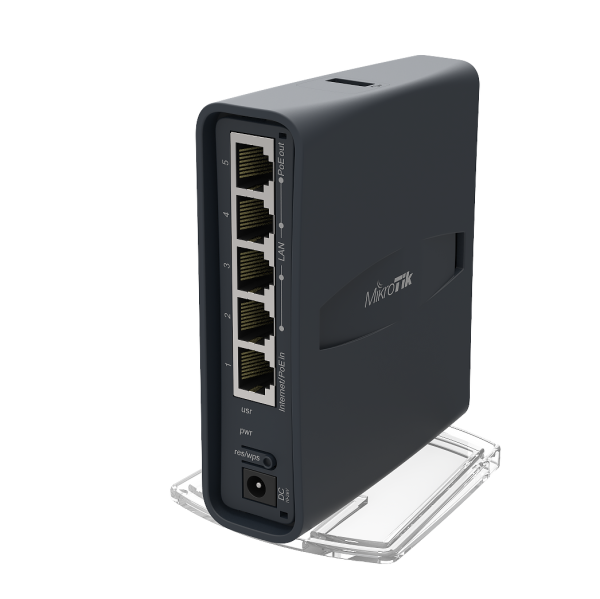

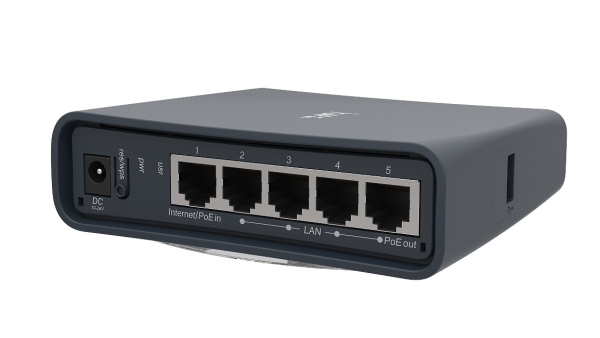

Ethernet Details
10/100 Ethernet ports: 5

Peripherals Details
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1

Powering Details
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 10-28 V
Max power consumption: 20 W
Max power consumption without attachments: 8 W
Cooling type: Passive
PoE in Passive: PoE
PoE in input Voltage: 10-28 V

PoE-out Details
PoE-out ports: Ether5
PoE out Passive: PoE
Max out per port output (input 18-30 V): 500 mA
Max total out (A): 500 mA
